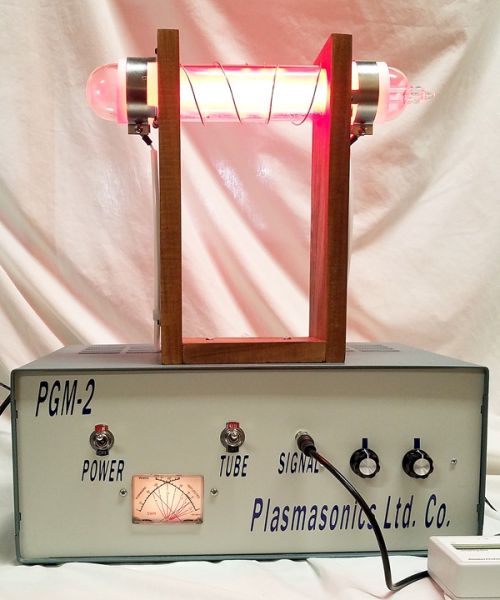

Rife Frequnency Generator - The PGM-2
The PGM-2 represents the work and development of over 25 years of research. Plasma Sonics equipment creates output pulse repetition frequencies that are of the same frequency as the modulation frequency. This instrument will continuously output oscillating pulsed fields with pulse repetition rates as high as 4.5 MHz ( 4.5 million pulses per second) . All of the original #4 machine frequencies of 1935 can be modulated , including the majority of the # 3 machine frequencies that was used in 1934 . The frequencies of the # 3 machine that are above 4.5 MHz, are able to be output as harmonic sidebands. Either as a modulated signal, or as an actual signal ( 11.78 Mhz for example) . See the linked Discussion Page for explanation and photos of this ability. This is a low power device with output of between 60 and 70 watts to the plasma tube. Pulses in the MHz range are of sub microsecond duration, that is in the nanosecond ( billionth of a second) range. Nanosecond duration pulses create different cellular physiologic effects than the typically used millisecond to microsecond pulses used by other instruments.
An Instrument That Creates Pulsed Transmitted Fields With Nanosecond Duration Pulses
The PGM-2 represents the work and development of over 25 years of research. Plasma Sonics equipment creates output pulse repetition frequencies that are of the same frequency as the modulation frequency. This instrument will continuously output oscillating pulsed fields with pulse repetition rates as high as 4.5 MHz ( 4.5 million pulses per second) . All of the original #4 machine frequencies of 1935 can be modulated , including the majority of the # 3 machine frequencies that was used in 1934 . The frequencies of the # 3 machine that are above 4.5 MHz, are able to be output as harmonic sidebands. Either as a modulated signal, or as an actual signal ( 11.78 Mhz for example) . See the linked Discussion Page for explanation and photos of this ability. This is a low power device with output of between 60 and 70 watts to the plasma tube. Pulses in the MHz range are of sub microsecond duration, that is in the nanosecond ( billionth of a second) range. Nanosecond duration pulses create different cellular physiologic effects than the typically used millisecond to microsecond pulses used by other instruments.
Read More about the frequency output capabilities of the PGM-2 here : Discussion Page
An AI evaluation of the potential uses of Nanosecond duration pulses:
Specifications:
- Power input - 110 to 230 V with automatic internal adaptation. Just change AC cord to the correct wall plug style depending upon country.
- Power output - 60 to 70 watts @ 27.12 Mhz
- Frequency range 40hz to 4,500,000 hz
- Rise and Fall time of pulse envelope < 20 ns
- Size - Approx 17" wide X 11" deep X 7 inches in height.
- The PGM-2 Ships tuned and ready to use complete with an Atelier Robin F165 Frequency generator and a 12" X 2" pyrex plasma tube antenna.
PGM-2 Plasma Sonics — Technical Details (Line by Line)
-
Power Input:
110 to 230 volts AC, auto-switching for global use.
(Just change the AC plug based on your country's outlet type.) -
Power Output:
60 to 70 watts of power delivered to the plasma tube. -
Carrier Frequency:
Fixed carrier frequency at 27.12 MHz (standard ISM band for RF devices). -
Frequency Range:
Supports modulation from 40 Hz up to 4,500,000 Hz (4.5 MHz). -
Pulse Repetition Rate:
Generates up to 4.5 million pulses per second. -
Rise and Fall Time of Pulse Envelope:
Less than 20 nanoseconds (extremely fast pulse transitions). -
Pulse Duration:
Pulses occur in the nanosecond range (billionths of a second). -
High-Frequency Capability:
Frequencies above 4.5 MHz are emitted as harmonic sidebands
(e.g., can generate 11.78 MHz via modulation or harmonics). -
Historical Frequency Compatibility:
Outputs all 1935 #4 machine frequencies.
Also supports most 1934 #3 machine frequencies. -
Waveform Matching:
Output frequency is exactly the same as the modulation frequency (not an envelope). -
Plasma Tube:
Includes a 12" x 2" Pyrex glass plasma tube as the antenna. -
Frequency Generator:
Comes with the Atelier Robin F165 frequency generator. -
Size:
Approx. 17 inches wide × 11 inches deep × 7 inches high
(about 43 cm × 28 cm × 18 cm). -
Cooling System:
Not specified — assumed passive or internally managed for 70W output. -
Operating Mode:
Continuously outputs modulated signals without interruption. -
Pulse Effects:
Nanosecond pulses induce cellular-level physiological responses
that differ from traditional millisecond or microsecond pulse systems. -
Construction:
Factory-tuned and shipped ready to use out of the box.
-
Ultra-Fast Nanosecond Pulses:
Generates pulses in the nanosecond range, enabling deep cellular stimulation that is not achievable with slower millisecond or microsecond systems. -
Wide Frequency Range:
Covers 40 Hz to 4.5 MHz, including historic therapeutic frequencies from the 1930s, giving you access to a broad spectrum of biological frequencies. -
High Precision Output:
Pulse repetition frequency exactly matches the modulation frequency — ensures accurate waveform delivery. -
Harmonic Sideband Capability:
Can output higher frequencies (e.g. 11.78 MHz) as harmonics — allows use of frequencies beyond the native hardware limit. -
Historical Frequency Compatibility:
Supports all original #4 and most #3 machine frequencies — ideal for researchers interested in Rife frequency studies or electrotherapy history. -
Low Power, Safe Output:
Delivers 60–70W to the plasma tube — enough for effective field generation while remaining safe and non-invasive. -
Global Voltage Compatibility:
Works with 110–230V input — no external voltage converter needed, perfect for international users. -
Compact and Ready-to-Use:
Comes pre-tuned with included F165 frequency generator and plasma antenna — plug and play, no complex setup required. -
Non-Thermal Effects:
Designed for non-thermal bioeffects — influences cellular processes without heating tissue, making it more versatile. -
High Signal Clarity:
Fast rise/fall times (<20 ns) produce sharp, clean pulses, improving signal penetration and biological impact. -
Research-Grade Design:
Built for experimental, research, or alternative therapeutic use — suitable for advanced users exploring EM field effects. -
Durable Plasma Tube Antenna:
Includes a Pyrex glass antenna, known for chemical and thermal resistance, ensuring long life and consistent performance. -
Backed by 25+ Years of R&D:
The result of over two decades of development — reflects proven, refined engineering in plasma pulse technology. -
AI-Assisted Analysis:
Backed by AI evaluation of nanosecond pulse effects — supports modern bioenergetic understanding.
